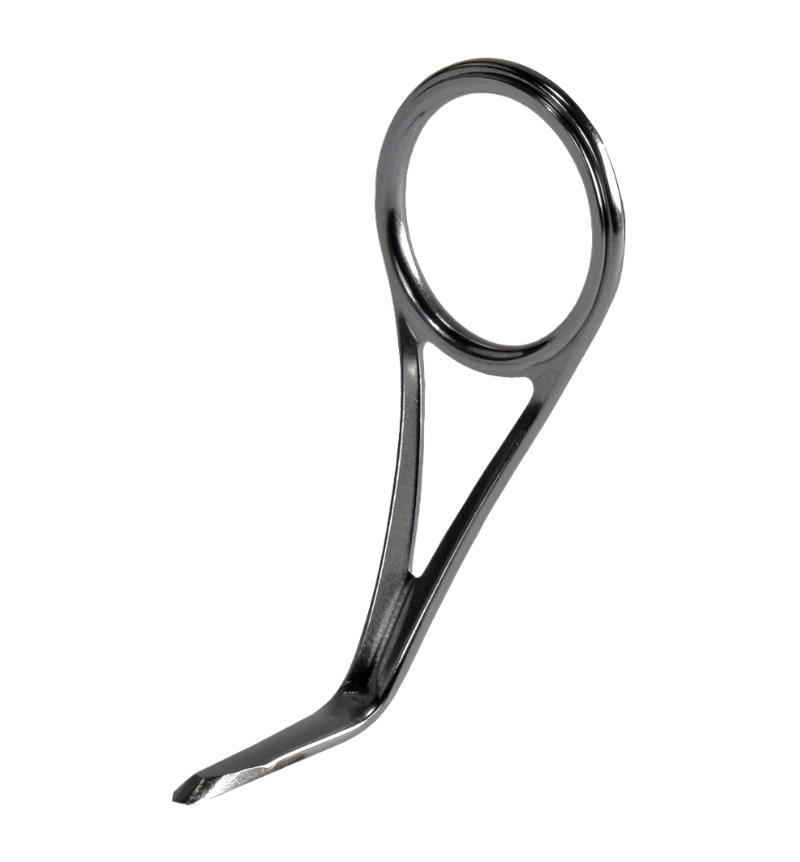

Pacific Bay Minima High Frame Spinning Guides Model ZV
- All purpose spinning guide
- Higher frame than SV or DV frames
- Also available with Zirconia ceramic insert rings
Specifications
| Ring No. | Height (H) | Length (L) | Foot Length (L1) | Weight (ceramic) | Ring ID (ceramic) |
|---|---|---|---|---|---|
| 6 | 13.3 | 12.2 | 7.8 | 0.21g | 4.1 |
| 7 | 14.4 | 10.9 | 8.0 | 0.27g | 4.8 |
| 8 | 17.1 | 13.5 | 9.0 | 0.38g | 5.6 |
| 10 | 21.25 | 15.25 | 8.4 | 0.50g | 7.2 |
| 12 | 27.3 | 18.6 | 10.6 | 0.76g | 8.4 |
| 14 | 30.4 | 18.7 | 12.6 | 0.93g | 9.8 |
| 16 | 33.9 | 20.9 | 13.1 | 1.71g | 11.0 |
| 20 | 43.2 | 29.6 | 15.5 | 2.35g | 13.2 |
| 25 | 51.25 | 32.4 | 18.9 | 3.83g | 17.2 |
| 30 | 61.75 | 40.2 | 19.7 | 6.29g | 23.2 |

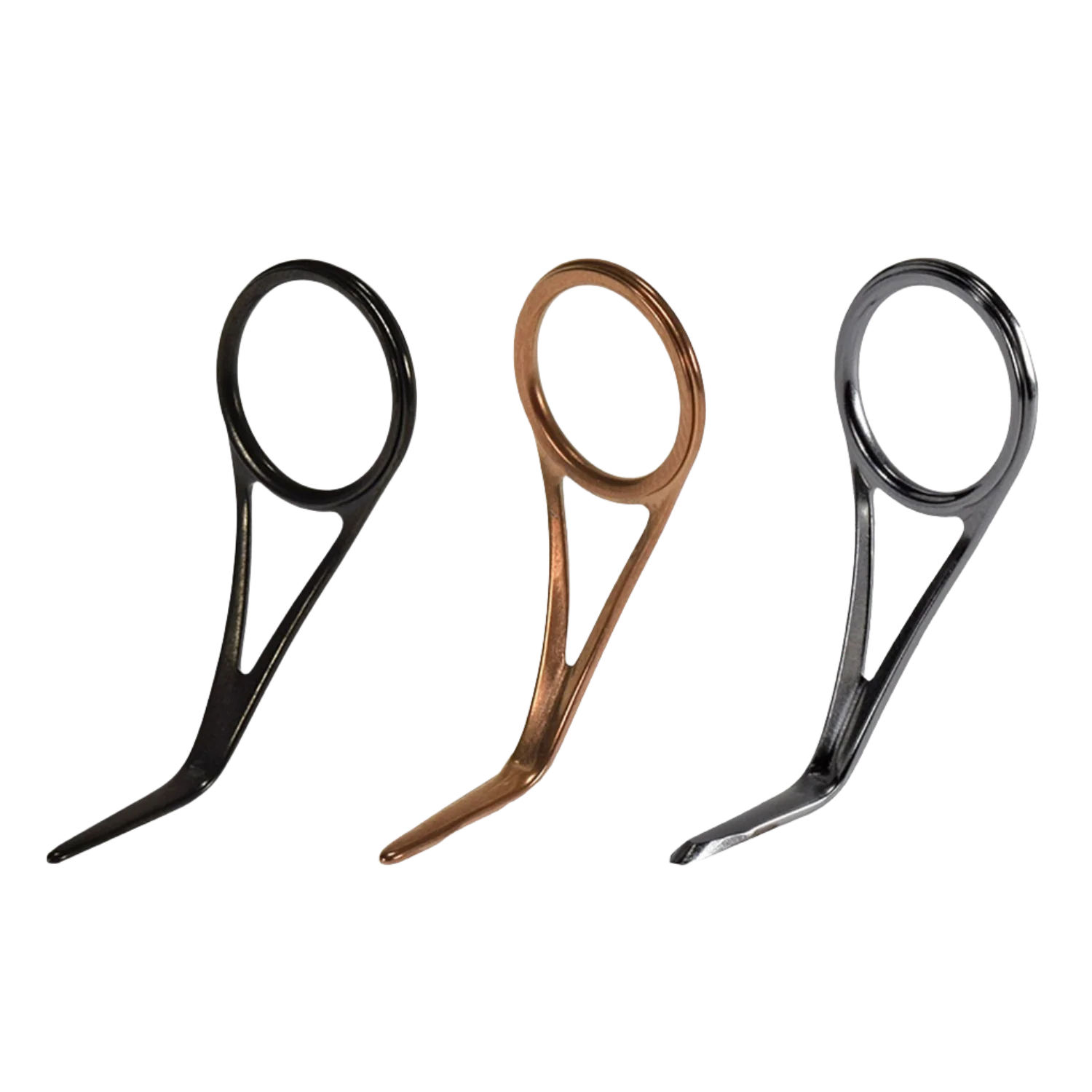

Select Color
Select Size
From $1.75
Original: $5.00
-65%Pacific Bay Minima High Frame Spinning Guides Model ZV—
$5.00
$1.75
Description
- All purpose spinning guide
- Higher frame than SV or DV frames
- Also available with Zirconia ceramic insert rings
Specifications
| Ring No. | Height (H) | Length (L) | Foot Length (L1) | Weight (ceramic) | Ring ID (ceramic) |
|---|---|---|---|---|---|
| 6 | 13.3 | 12.2 | 7.8 | 0.21g | 4.1 |
| 7 | 14.4 | 10.9 | 8.0 | 0.27g | 4.8 |
| 8 | 17.1 | 13.5 | 9.0 | 0.38g | 5.6 |
| 10 | 21.25 | 15.25 | 8.4 | 0.50g | 7.2 |
| 12 | 27.3 | 18.6 | 10.6 | 0.76g | 8.4 |
| 14 | 30.4 | 18.7 | 12.6 | 0.93g | 9.8 |
| 16 | 33.9 | 20.9 | 13.1 | 1.71g | 11.0 |
| 20 | 43.2 | 29.6 | 15.5 | 2.35g | 13.2 |
| 25 | 51.25 | 32.4 | 18.9 | 3.83g | 17.2 |
| 30 | 61.75 | 40.2 | 19.7 | 6.29g | 23.2 |
